PROJECT 30AE · GYMKHANA CODEX

THE INITIAL D
GYMKHANA CODEX

Sixteen instructional manga pages for the MX-5 ND2 RF 30th Anniversary Edition. Racing Orange. Öhlins DFV. Torsen LSD. Three AI models fact-checked every panel against the source curriculum.

16Pages
96Panels
3AI Reviewers
v2Fact-Checked
CHAPTER ONE

Foundations

Physics, weight transfer, and the build sheet that defines the car you're learning to drive.

No. 01 v2 · Fact-Checked

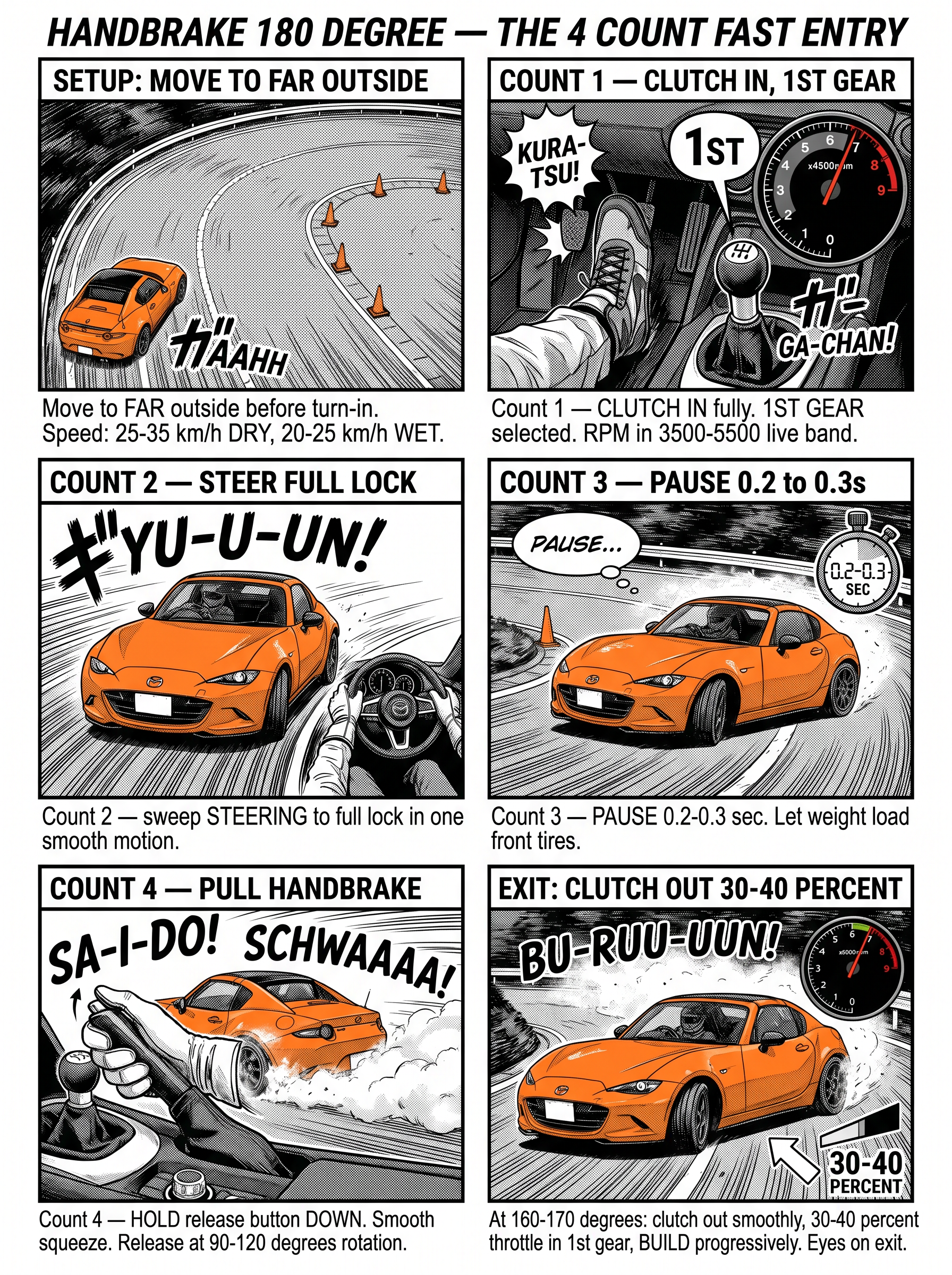

Handbrake 180° — The 4-Count Fast Entry

Move to the far outside. Clutch in. Sweep the wheel. Pause 0.2–0.3 seconds. Pull the lever, thumb on release. Exit at 30–40% throttle and build progressively. Speed window: 25–35 km/h dry / 20–25 km/h wet.

Manga 1 — Handbrake 180°
No. 02 Verified

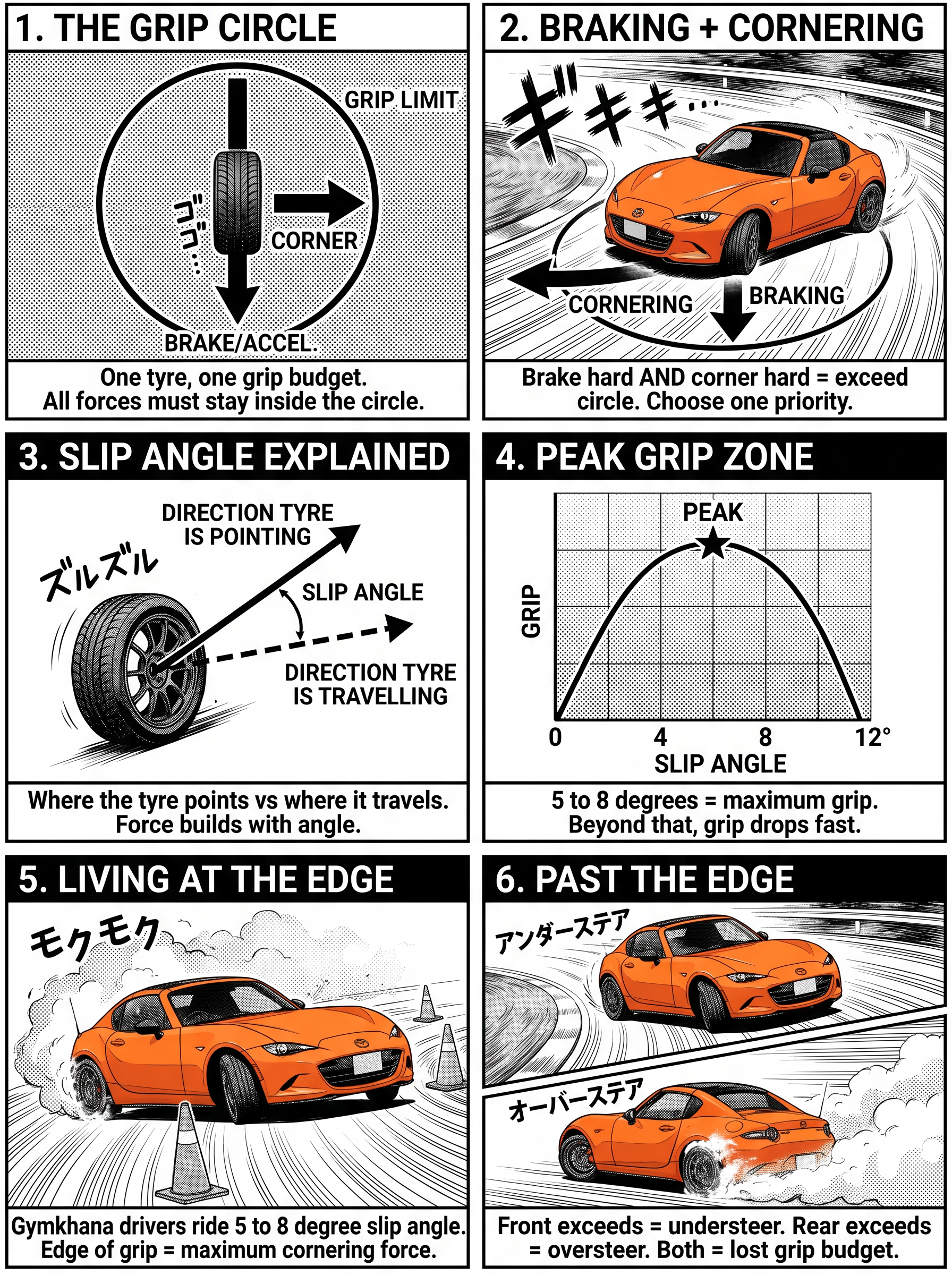

Friction Circle & Slip Angle

One tire, one grip budget. Brake, corner, accelerate — the forces all share the same pie. Peak grip lives at 5–8 degrees of slip angle. Past the edge, grip drops fast.

Manga 2 — Friction Circle
No. 03 Verified

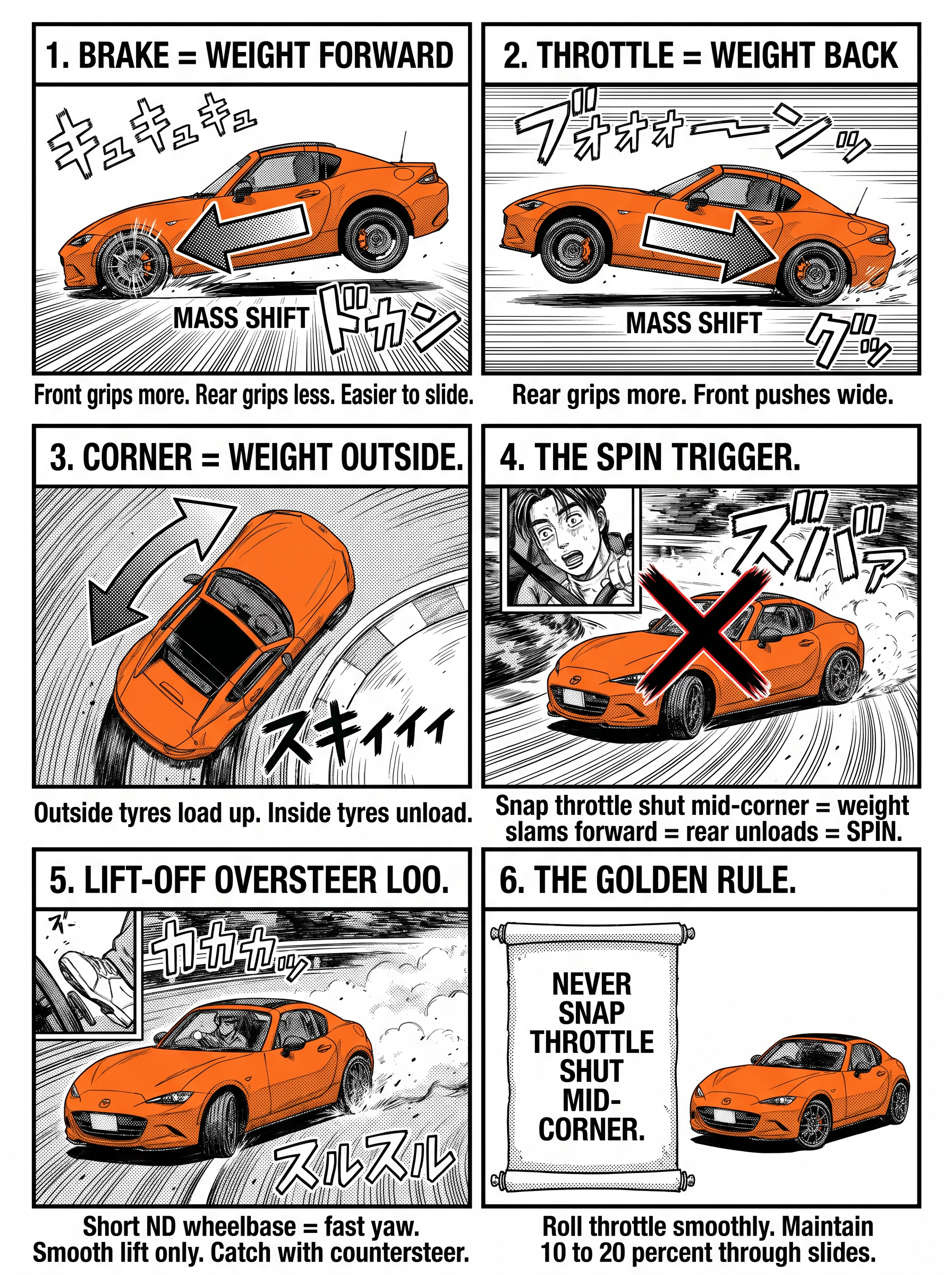

Weight Transfer & Lift-Off Oversteer

Brake = weight forward. Throttle = weight back. Snap the throttle shut mid-corner and the short ND wheelbase yaws fast. Hold 10–20% throttle through any slide.

Manga 3 — Weight Transfer
No. 04 v2 · Fact-Checked

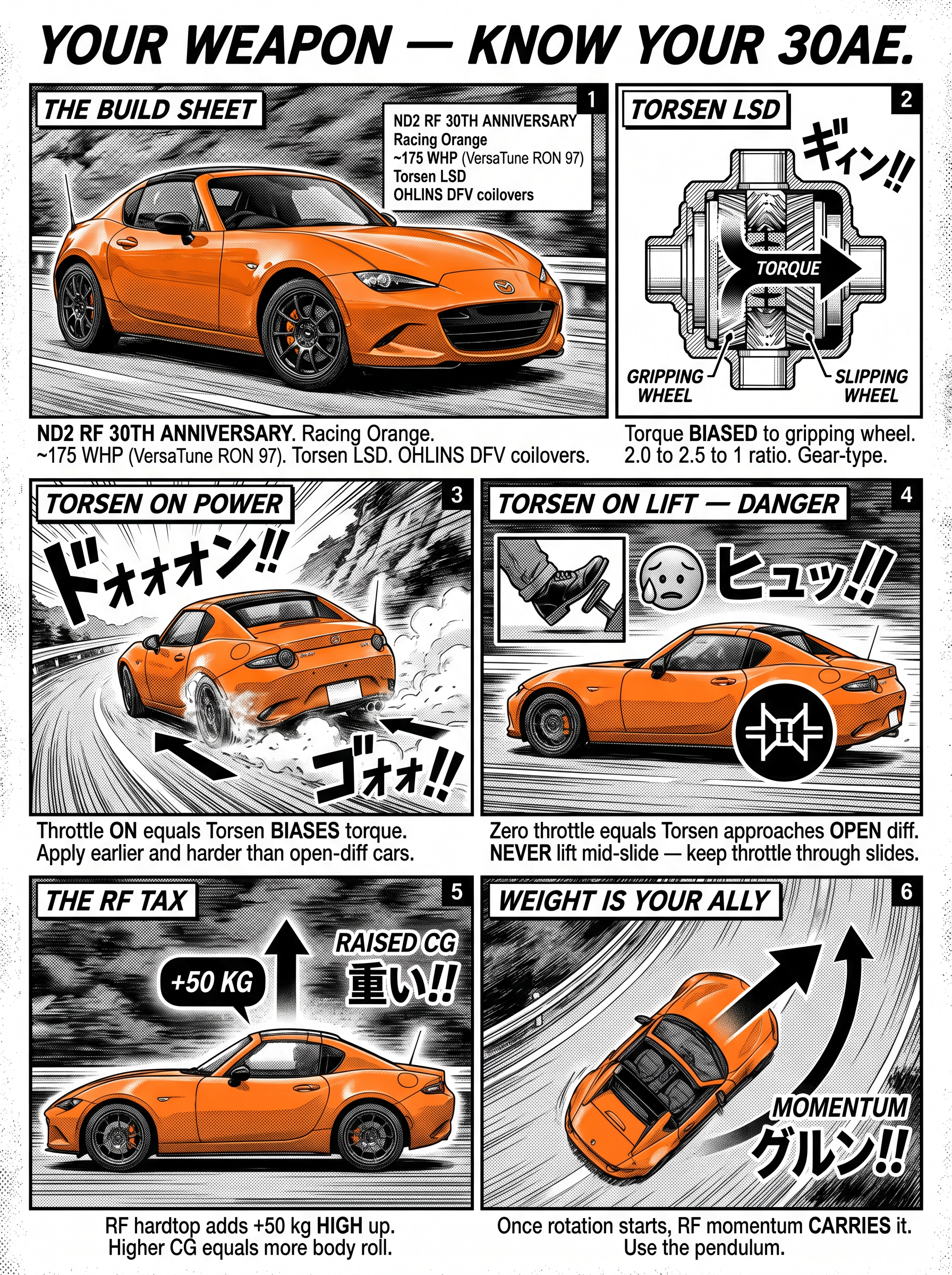

Your Weapon — Know Your 30AE

ND2 RF 30th Anniversary. Racing Orange. ~175 whp on VersaTune RON 97. Torsen LSD biases torque to the gripping wheel (2.0–2.5:1, gear-type). Öhlins DFV coilovers. Never lift mid-slide.

Manga 4 — Your 30AE
CHAPTER TWO

Driving Discipline

Throttle control, downshifting, and where the eyes have to live.

No. 05 Verified

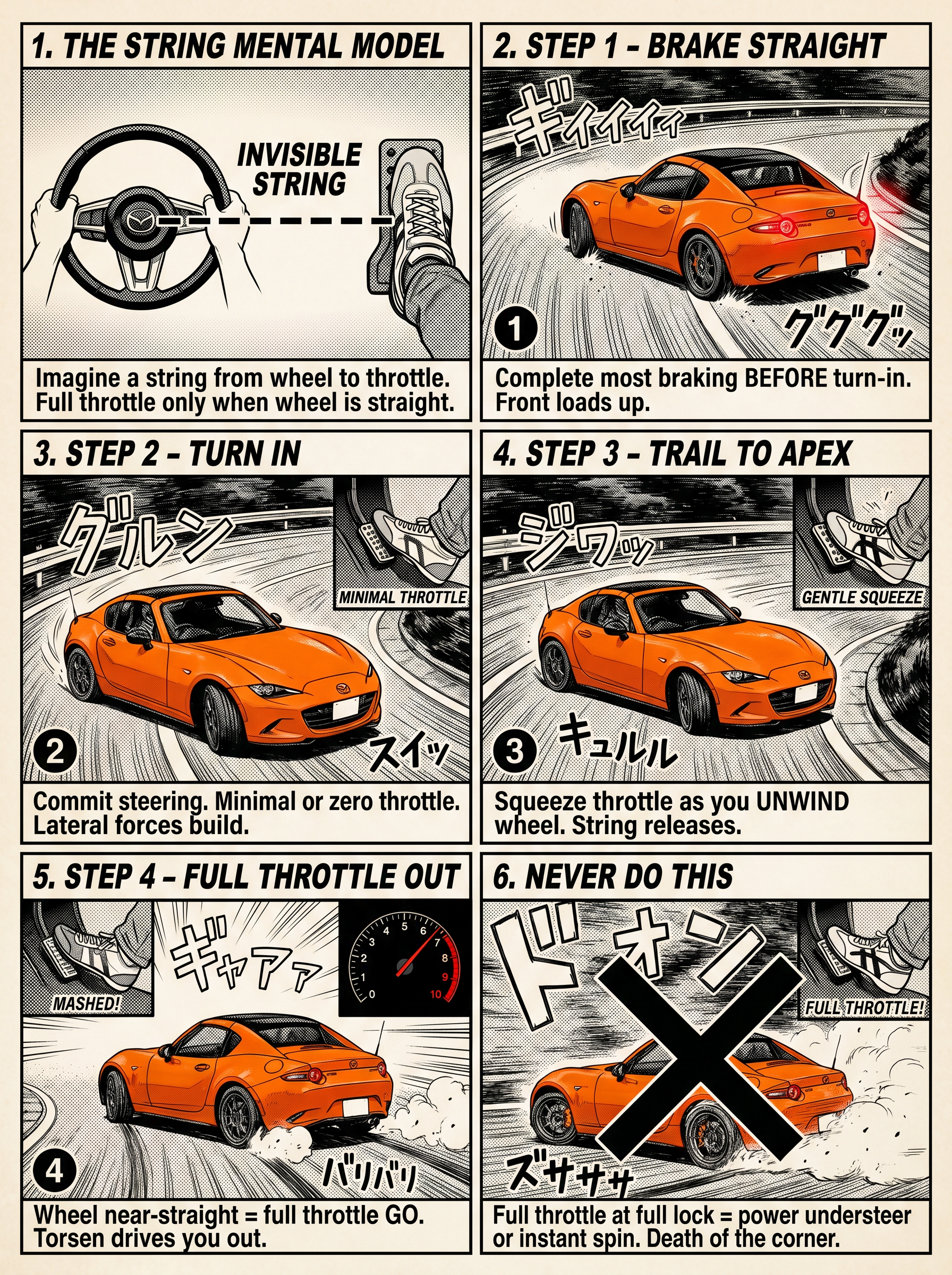

Throttle Discipline + Slow-In Fast-Out

Imagine a string between the steering wheel and the throttle. Full throttle only when the wheel is straight. Brake straight, turn in, trail to apex, full throttle out.

Manga 5 — Throttle Discipline
No. 06 Verified

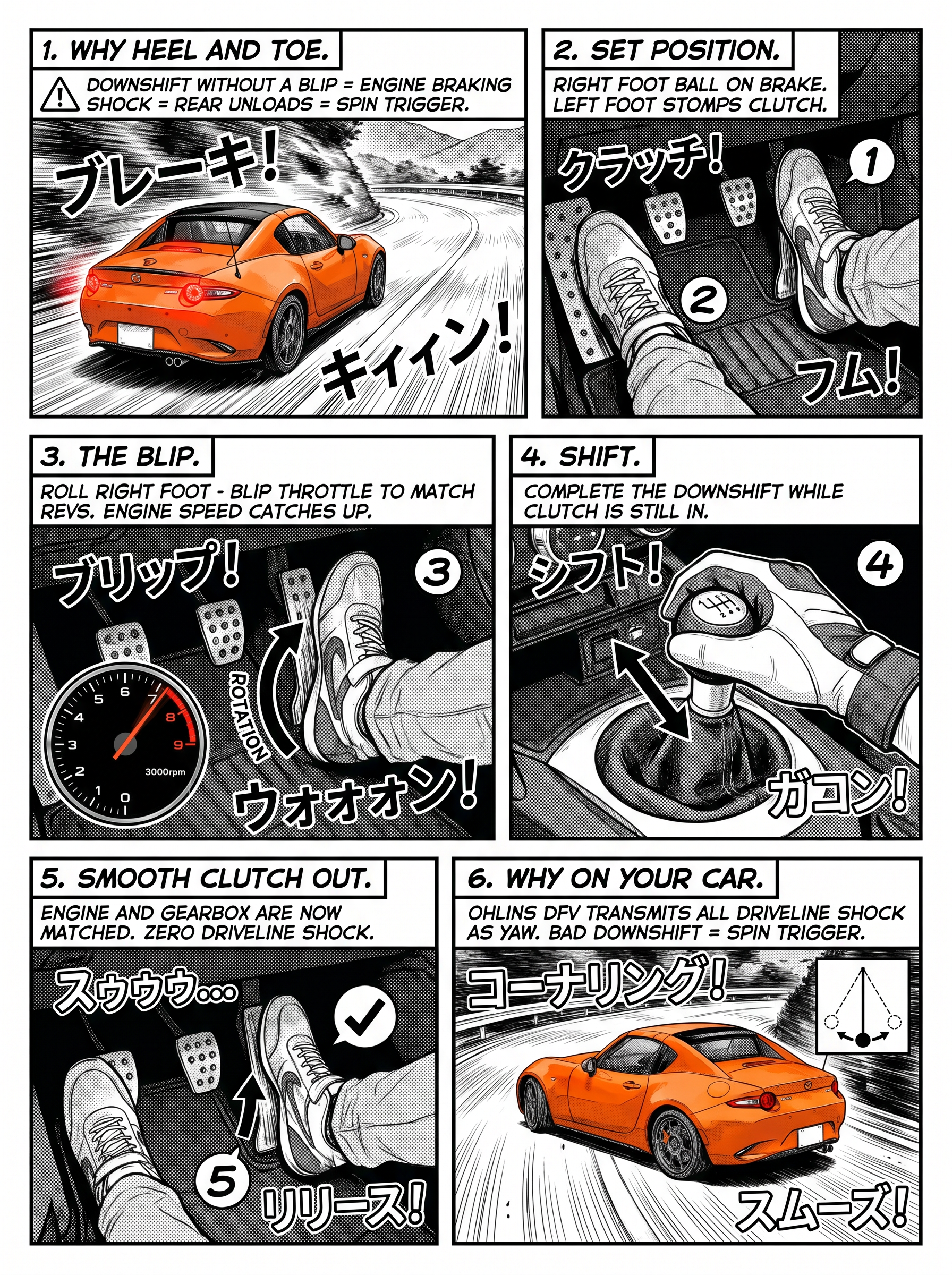

Heel-and-Toe Downshift

Right-foot ball on brake, left foot stomps clutch, right edge blips the throttle. Match revs, drop the gear, smooth clutch out. The Öhlins DFV transmits any driveline shock straight into yaw.

Manga 6 — Heel-and-Toe
No. 07 Verified

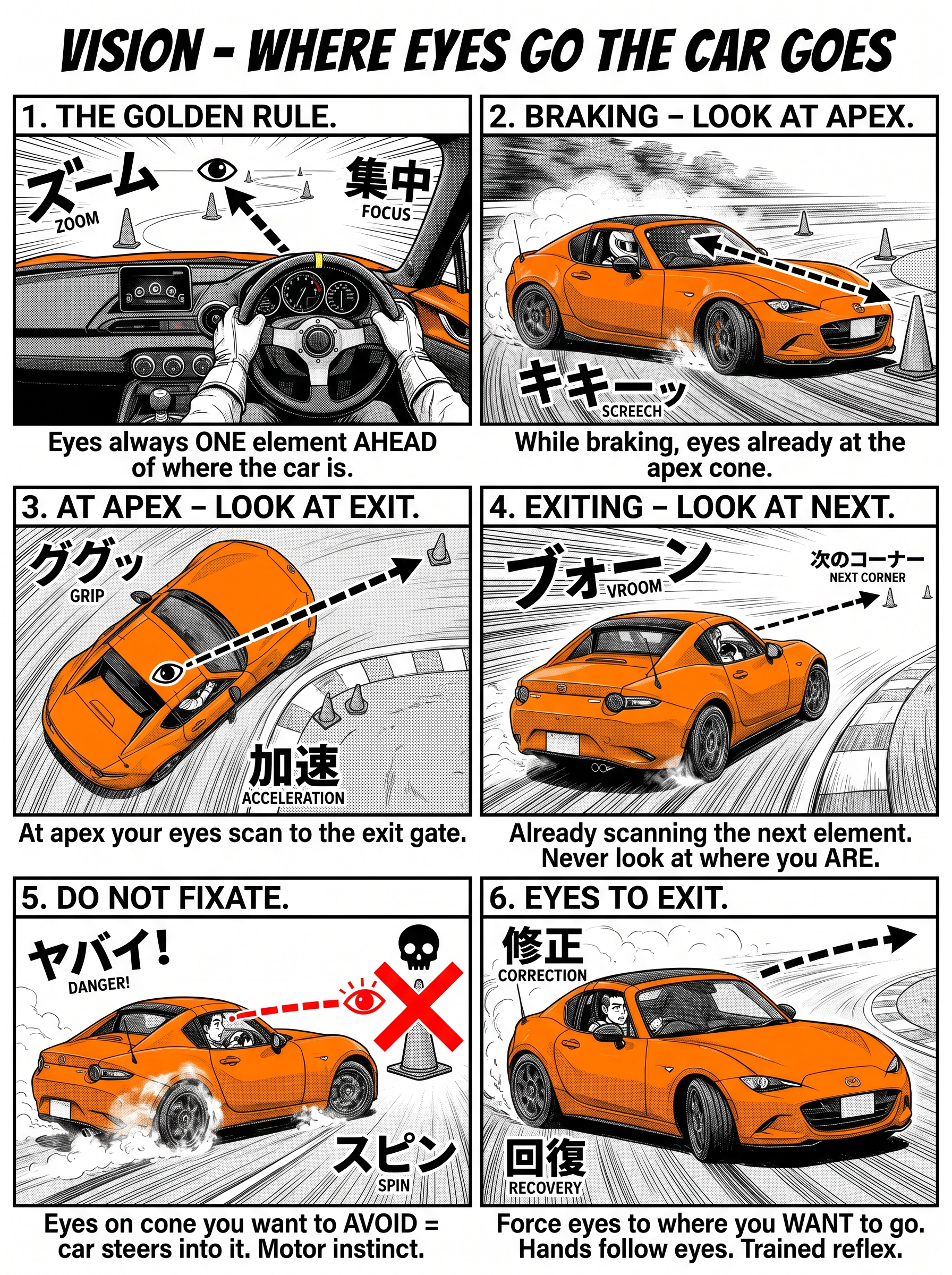

Vision Discipline

Eyes one element ahead. Braking → look at the apex. At the apex → look at the exit. Exiting → look at the next. Eyes on the cone you want to avoid = you steer into it.

Manga 7 — Vision Discipline
CHAPTER THREE

Core Maneuvers

Trail braking at any speed, the donut, and the 360° around a cone.

No. 08 v2 · Fact-Checked

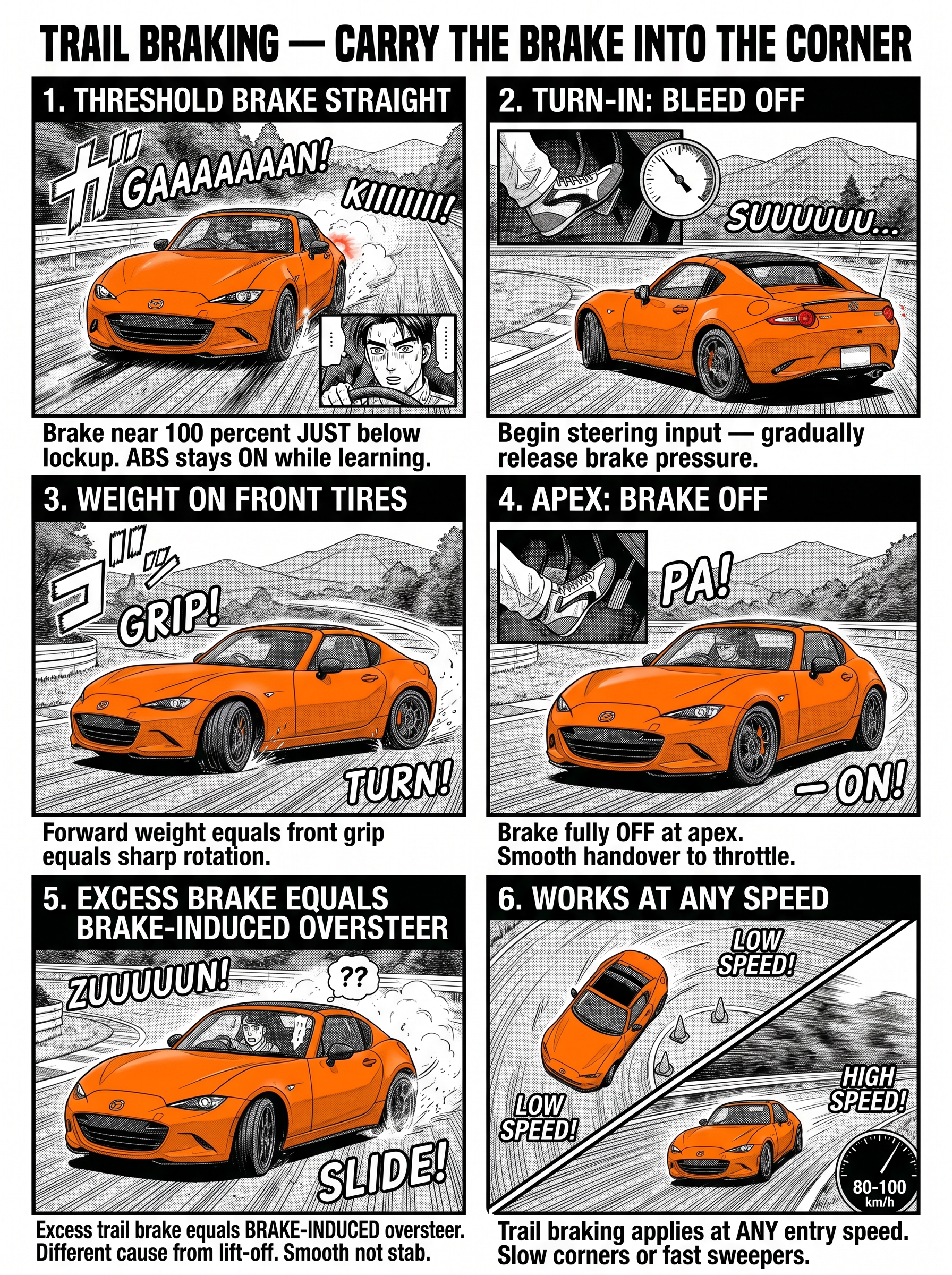

Trail Braking — Carry the Brake into the Corner

Threshold-brake straight (ABS stays on while learning). Bleed off at turn-in. Brake fully off at the apex. Excess trail brake produces brake-induced oversteer (different from lift-off). Works at any entry speed — slow corners or 80–100 km/h sweepers.

Manga 8 — Trail Braking
No. 09 v2 · Fact-Checked

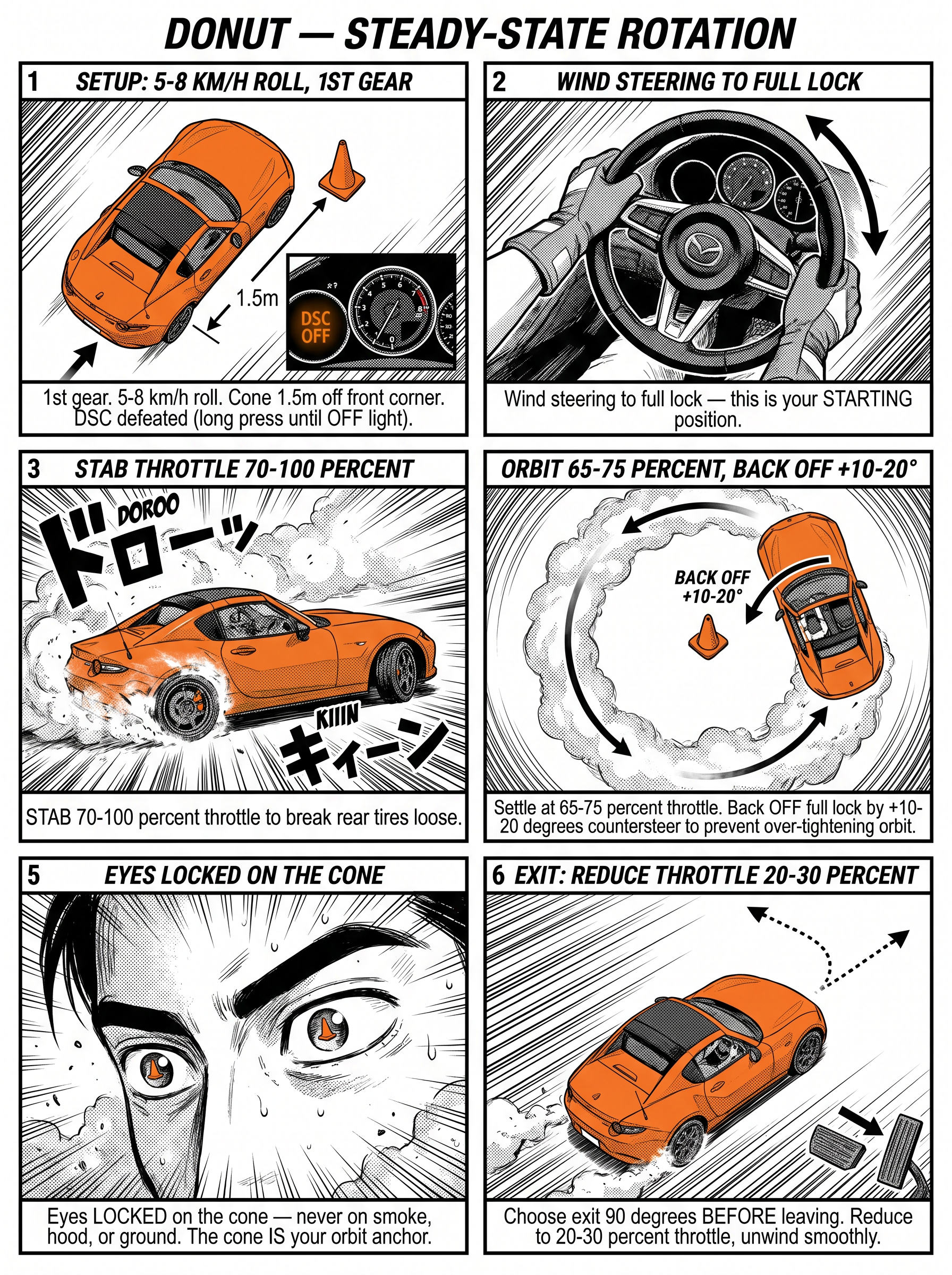

The Donut — Throttle as Steering

1st gear, 5–8 km/h roll. Cone 1.5 m off the front corner. DSC defeated (long press until OFF). Full lock, stab 70–100% to break the rear loose, settle at 65–75% to orbit. Eyes locked on the cone — never on smoke or hood.

Manga 9 — The Donut
No. 10 v2 · Fact-Checked

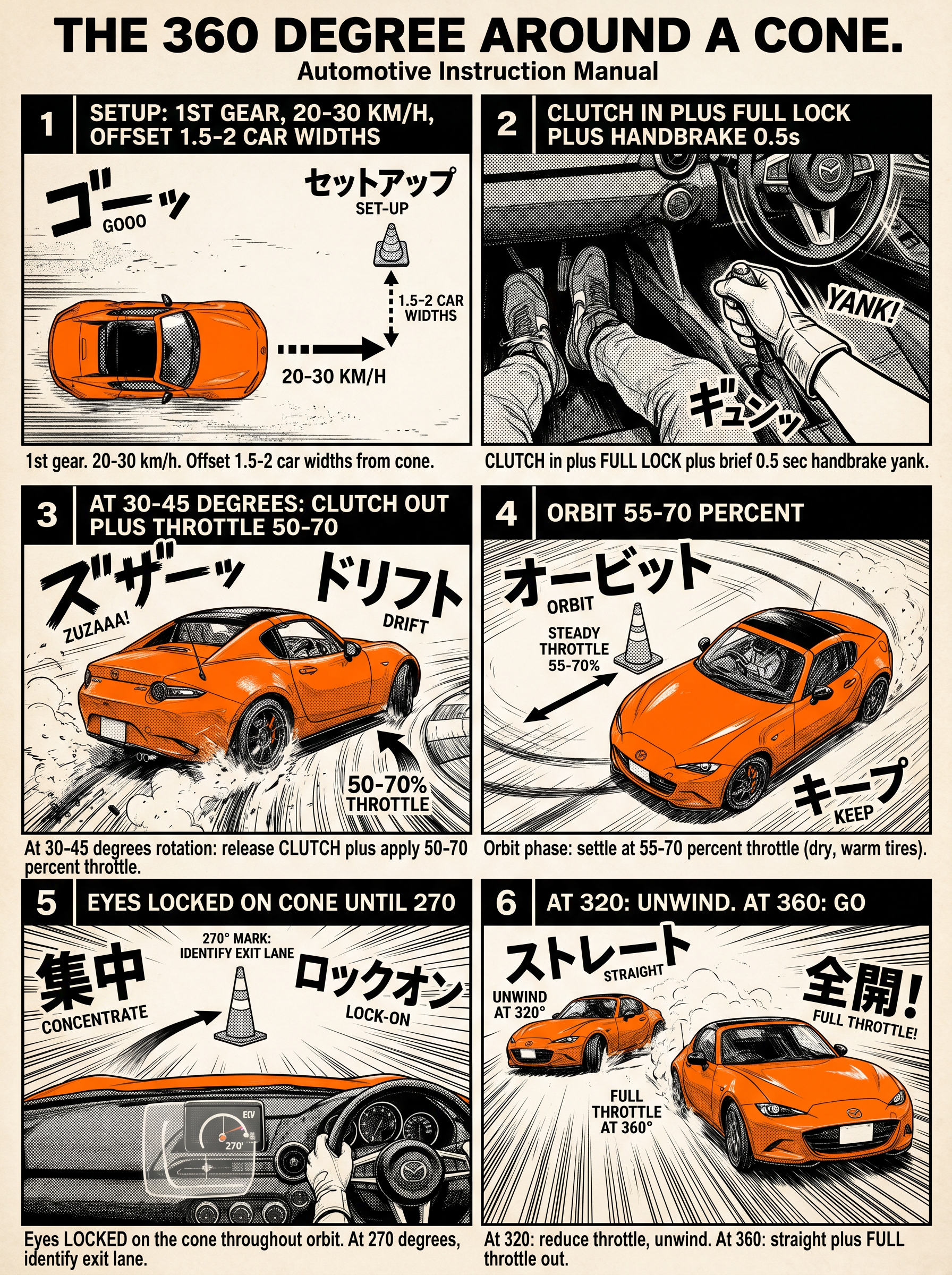

The 360° Around a Cone

1st gear, 20–30 km/h, 1.5–2 car widths offset. Clutch + full lock + a 0.5 s handbrake yank. At 30–45° rotation, clutch out and 50–70% throttle. Orbit at 55–70%, eyes locked on the cone. At 270° identify exit. At 320° unwind. At 360° full throttle out.

Manga 10 — 360°
CHAPTER FOUR

Advanced Techniques

Throttle steering, left-foot braking, and the Scandinavian flick — for when the basics are reflex.

No. 11 Verified

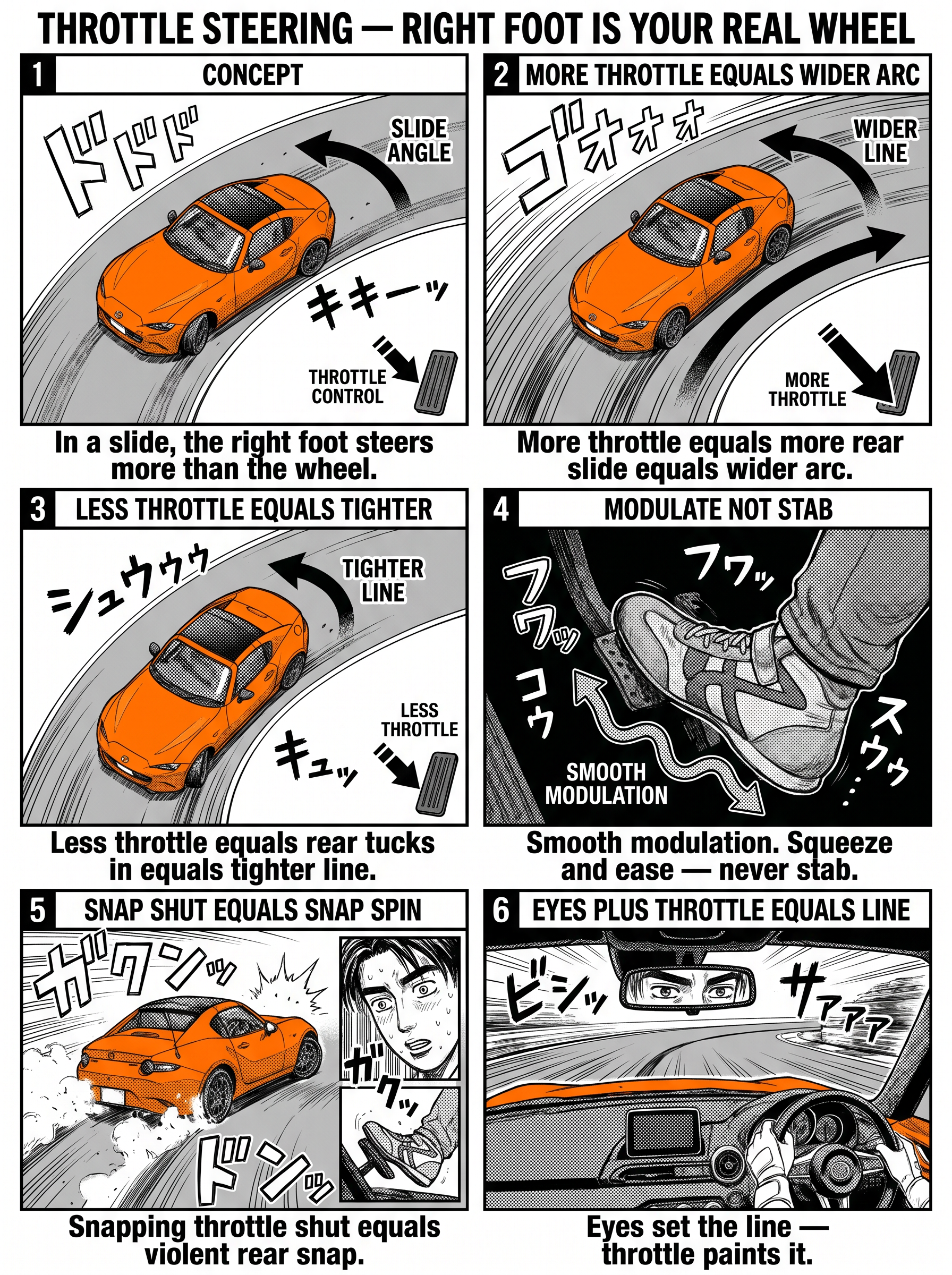

Throttle Steering — Right Foot Is Your Real Wheel

In a slide, the right foot steers more than the wheel. More throttle = wider arc. Less throttle = tighter line. Snap shut = violent rear snap. Smooth modulation, never stab.

Manga 11 — Throttle Steering
No. 12 Verified

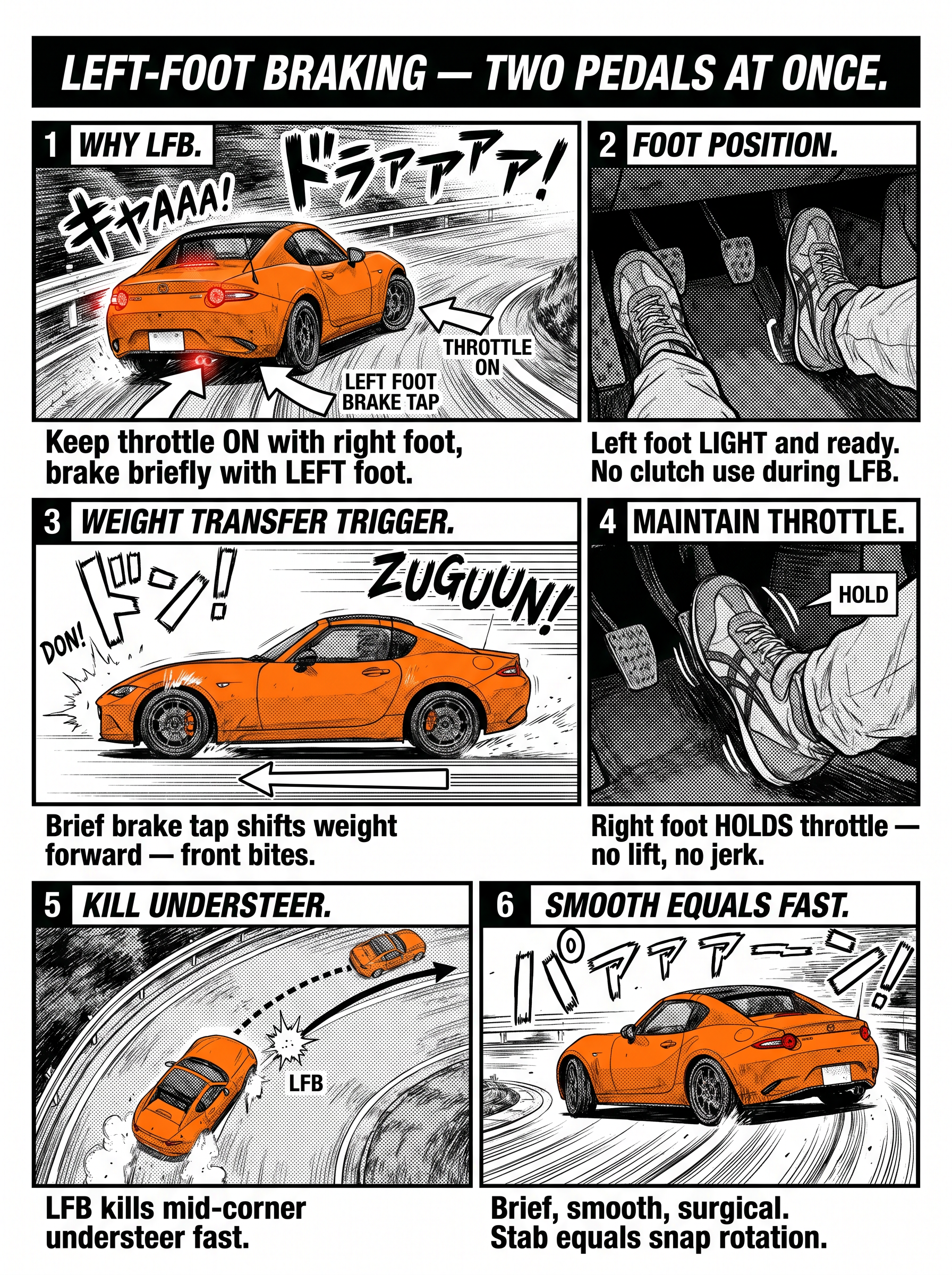

Left-Foot Braking — Two Pedals at Once

Right foot holds throttle. Left foot brakes briefly. Brief brake tap shifts weight forward — front bites — kills mid-corner understeer. Brief, smooth, surgical. Stab equals snap.

Manga 12 — Left-Foot Braking
No. 13 v2 · Fact-Checked

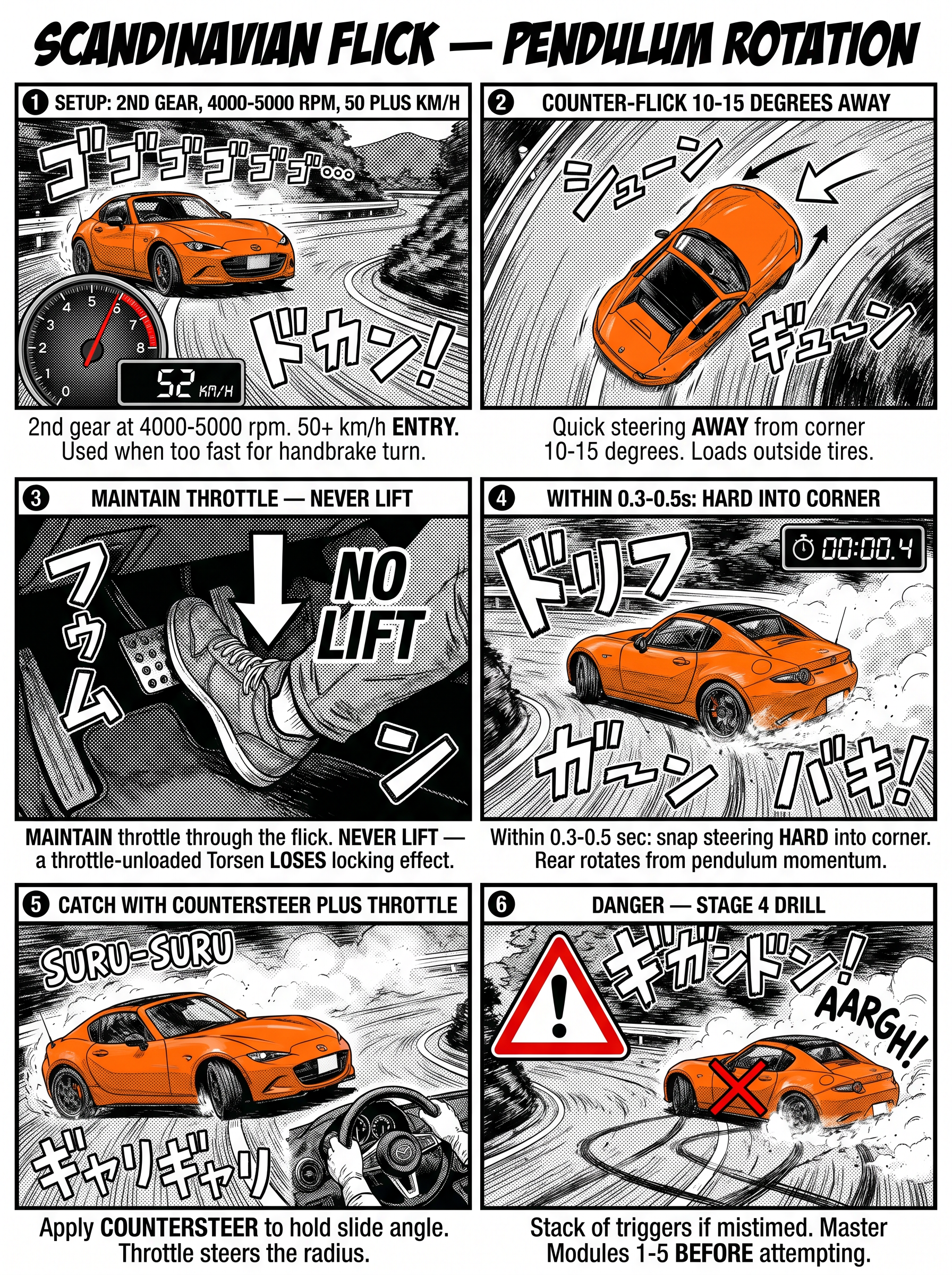

Scandinavian Flick — Pendulum Rotation

2nd gear at 4,000–5,000 rpm. 50+ km/h entry. Counter-flick 10–15° away. Maintain throttle — never lift (a throttle-unloaded Torsen loses its locking effect). Within 0.3–0.5 s, snap hard into the corner. Catch with countersteer + throttle.

Manga 13 — Scandinavian Flick
CHAPTER FIVE

Recovery

When the rear steps out, your reflexes have to be louder than panic.

No. 14 v2 · Fact-Checked

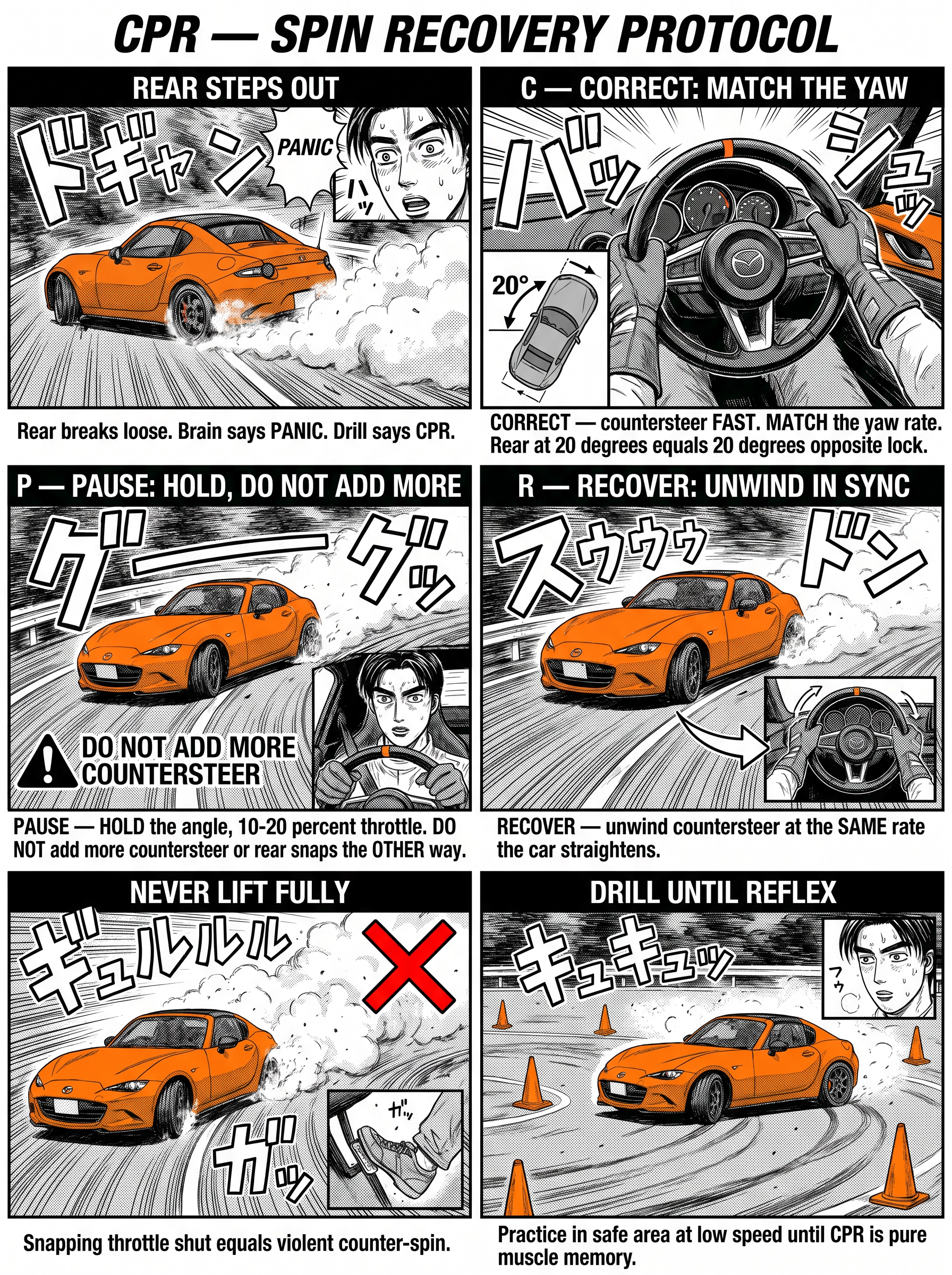

CPR — Spin Recovery Protocol

Correct: countersteer fast, match the yaw rate. Pause: hold the angle, 10–20% throttle, do not add more countersteer. Recover: unwind in sync with the car straightening. Never snap throttle shut.

Manga 14 — CPR
CHAPTER SIX

Setup & Race Day

Damper clicks before the run. Walkthroughs and breath-counts on the day.

No. 15 Verified

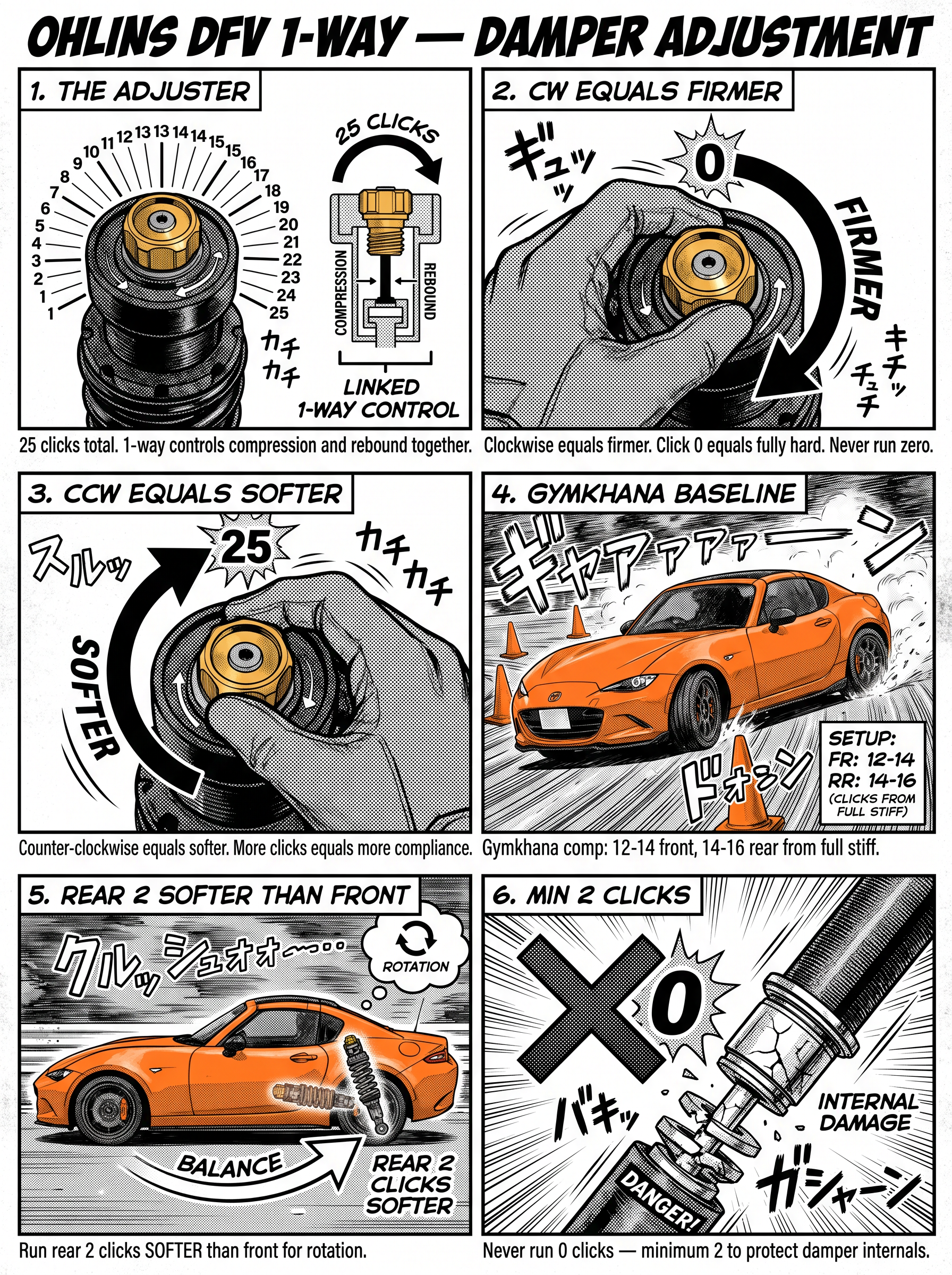

Öhlins DFV 1-Way — Damper Adjustment

25 clicks total, controls compression and rebound together. CW = firmer (0 = fully hard, never run zero). CCW = softer. Gymkhana baseline: 12–14 front / 14–16 rear from full stiff. Run rear 2 clicks softer than front for rotation. Minimum 2 clicks always.

Manga 15 — Öhlins DFV
No. 16 v2 · Fact-Checked

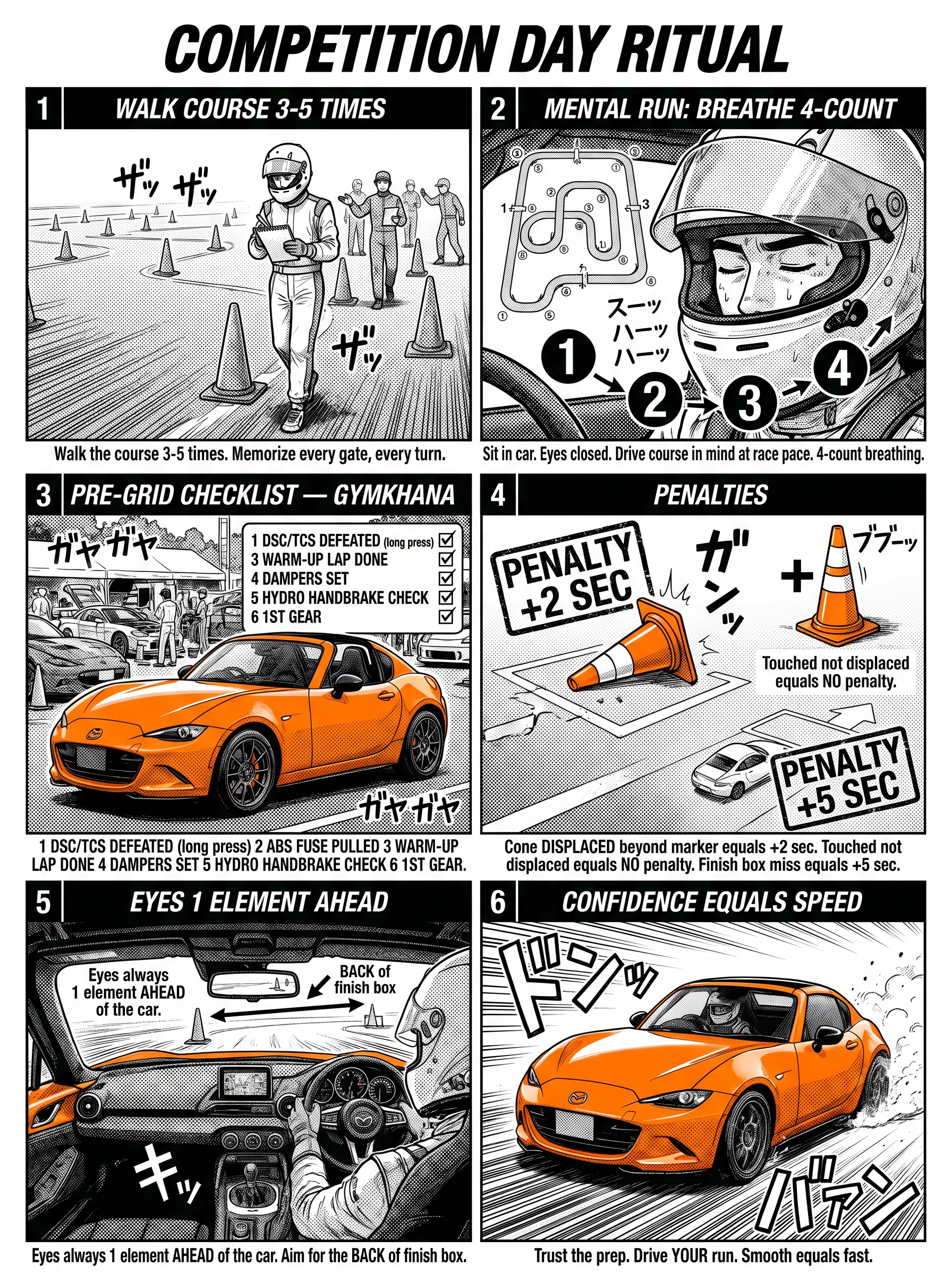

Competition Day Ritual

Walk the course 3–5 times. Mental run with eyes closed and 4-count breathing. Pre-grid: DSC defeated, ABS fuse pulled, warm-up lap, dampers set, hydro handbrake check, 1st gear. Cone displaced beyond marker = +2 sec. Finish-box miss = +5 sec.

Manga 16 — Competition Day
